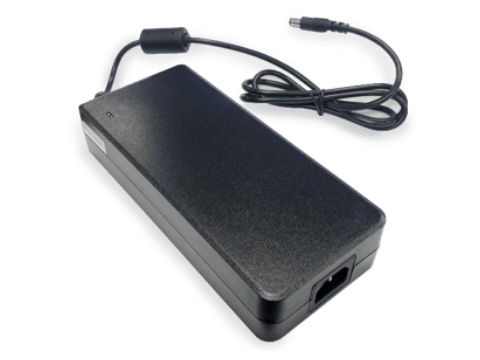

· 데스크탑(인렛)_Max.350W
C14 & C6 & C8

DESKTOP(INLET) AC-DC POWER SUPPLIES

High performance and Low cost
ROHS and Green power available

· 출력범위: 21.6W~350W
· 입력전압:AC 100V~240V
· AC INLET(인렛): C14(접지 CLASS I), C6(접지 CLASS I), C8(비접지 CLASS II)
· 에너지효율: VI(6)
· OV(과전류)/OC(과전압)/SC(단락전류) 3중 보호 등, LPS 통과
· 안전인증: UL, CE, FCC, KC, CCC, PSE, BSMI, TUV-GS, CB, EAC, UKCA 등
· 안전규격: IEC 62368-1 등
· REACH & ROHS 2.0 준수
· 데이타: MTBF(제품평균무고장시간), 콘덴서수명, MSDS(물질안전보건자료), 아답터내부온도, 품질신뢰성 등

· 적용 제품
ITE(정보통신), A/V(오디오/비디오) 등의 기기에 적용됩니다.

· MODEL LIST

상기 리스트에서 모델 및 안전인증 등은, 업데이트(추가 등) 중에 있을 수 있으니, 자세한 것은 문의 주시기 바랍니다.

· 출력리스트(OUTPUT LIST)

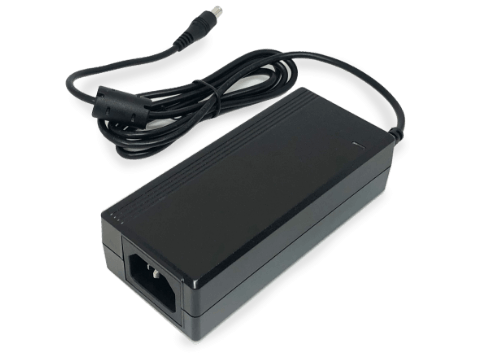

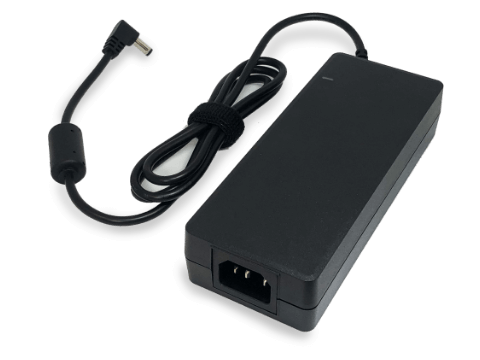

데스크탑(인렛) C14 (마름모형 3구)

5V
12-19V
20-24V
30-36V
48V
52-56V

5V5A 5V6A

12V3A 12V3.33A 12V4A 12V4.17A 12V5A 12V5.4A 12V7A 12V7.5A 12V8.33A 12V10A 12V12.5A 12V15A 12V16.67A 12V18.33A 12V29.16A 13V3.08A 13V3.85A 13V4.62A 14V2.86A 14V3.57A 14V4.29A 15V2.67A 15V3.33A 15V4A 15V6A 15V6.67A 15V8A 15V10A 15V12A 15V13.33A 15V14.67A 15V23.33A 16V2.5A 16V3.13A 16V3.75A 17V2.35A 17V2.94A 17V3.53A 17V10.59A 17V11.76A 17V12.94A 17V15A 18V2.22A 18V2.78A 18V3.61A 18V5A 18V5.55A 18V8.33A 18V10A 18V11.11A 18V12.22A 18V14.16A 18V19.44A 19V2.11A 19V2.63A 19V3.16A 19V3.42A 19V4.73A 19V4.736A 19V5.26A 19V6.32A 19V7.89A 19V9.47A 19V10.53A 19V11.53A 19V13.42A 19V15.79A 19V18.42A

20V2A 20V2.5A 20V3.25A 20V4.5A 20V5A 20V6A 20V7.5A 20V9A 20V10A 20V11A 20V12.75A 20V15A 20V17.5A 21V1.9A 21V2.38A 21V3.1A 22V1.82A 22V2.27A 22V2.95A 23V1.74A 23V2.17A 23V2.83A 24V1.67A 24V2.08A 24V2.5A 24V2.71A 24V3.75A 24V4.17A 24V5A 24V5.4A 24V6.25A 24V7.5A 24V8.33A 24V9.17A 24V10.63A 24V12.5A 24V14.58A

30V6A 30V6.66A 30V7.33A 36V1.11A 36V1.39A 36V1.67A 36V1.81A 36V5A 36V5.55A 36V6.11A 36V7.08A

48V0.63A 48V1.04A 48V1.25A 48V1.35A 48V1.66A 48V1.87A 48V1.875A 48V2.08A 48V2.5A 48V3.13A 48V3.75A 48V4.17A 48V4.58A 48V5.31A 48V6.25A 48V7.33A

52V0.58A 52V0.96A 52V1.15A 52V1.25A 52V1.73A 52V1.92A 52V2.3A 52V2.88A 52V3.46A 52V3.85A 52V4.23A 52V4.9A 52V5.77A 52V6.73A 54V0.56A 54V0.93A 54V1A 54V1.11A 54V1.2A 54V1.25A 54V1.666A 54V1.67A 54V1.85A 54V2.22A 54V2.4A 54V2.78A 54V3.33A 54V3.7A 54V4.07A 54V4.7A 54V4.72A 54V5.56A 54V6.48A 56V0.54A 56V0.89A 56V0.9A 56V1.07A 56V1.16A 56V1.067A 56V1.61A 56V1.79A 56V2.14A 56V2.68A 56V3.21A 56V3.57A 56V3.93A 56V4.55A 56V5.36A 56V6.25A

데스크탑(인렛) C6 (클로바형 3구)

5V
12-19V
20-24V
30-36V
48V
52-56V

5V5A 5V6A

12V3A 12V3.33A 12V4A 12V4.17A 12V5A 12V5.4A 12V7A 12V7.5A 12V8.33A 12V10A 12V12.5A 13V3.08A 13V3.85A 13V4.62A 14V2.86A 14V3.57A 14V4.29A 15V2.67A 15V3.33A 15V4A 15V6A 15V6.67A 15V8A 15V10A 16V2.5A 16V3.13A 16V3.75A 17V2.35A 17V2.94A 17V3.53A 18V2.22A 18V2.78A 18V3.61A 18V5A 18V5.55A 18V8.33A 19V2.11A 19V2.63A 19V3.16A 19V3.42A 19V4.73A 19V4.736A 19V5.26A 19V6.32A 19V7.89A

20V2A 20V2.5A 20V3.25A 20V4.5A 20V5A 20V6A 20V7.5A 21V1.9A 21V2.38A 21V3.1A 22V1.82A 22V2.27A 22V2.95A 23V1.74A 23V2.17A 23V2.83A 24V1.67A 24V2.08A 24V2.5A 24V2.71A 24V3.75A 24V4.17A 24V5A 24V5.4A 24V6.25A

36V1.11A 36V1.39A 36V1.67A 36V1.81A

48V0.63A 48V1.04A 48V1.25A 48V1.35A 48V1.66A 48V1.87A 48V1.875A 48V2.08A 48V2.5A 48V3.13A

52V0.58A 52V0.96A 52V1.15A 52V1.25A 52V1.73A 52V1.92A 52V2.3A 52V2.88A 54V0.56A 54V0.93A 54V1A 54V1.11A 54V1.2A 54V1.25A 54V1.666A 54V1.67A 54V1.85A 54V2.22A 54V2.4A 54V2.78A 56V0.54A 56V0.89A 56V0.9A 56V1.07A 56V1.16A 56V1.067A 56V1.61A 56V1.79A 56V2.14A 56V2.68A

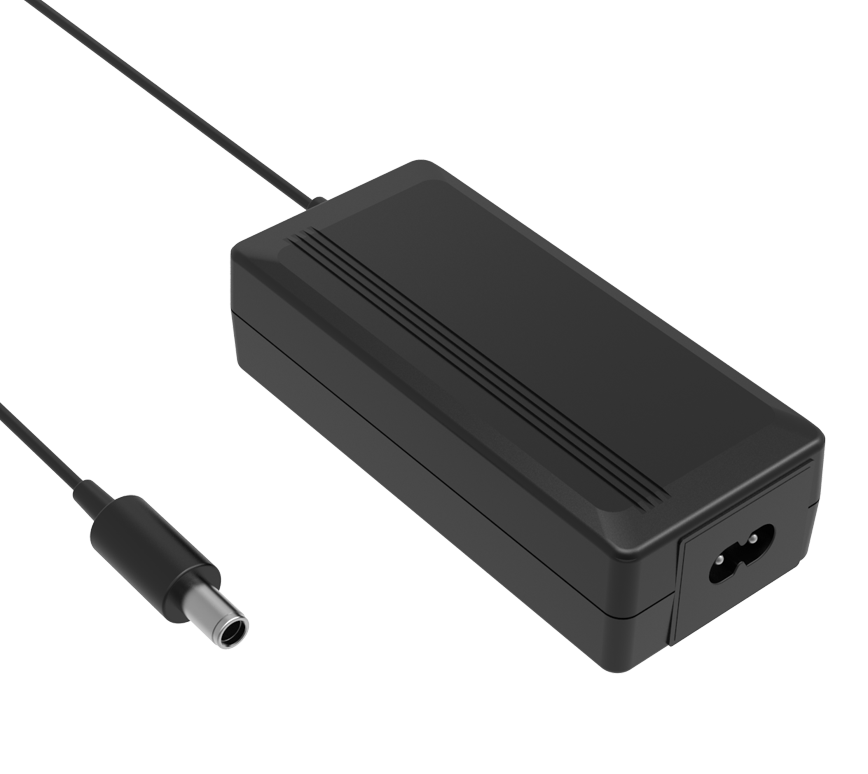

데스크탑(인렛) C8 (8자형 2구)
